Product Description:
A Semiconductor Optical Amplifiers (SOAs) are mainly used for optical amplification which can significantly improve the output optical power. SOAs are versatile and multifunctional devices that are key building blocks for optical networks.
Product Features:
- High Electric-optical Conversion Efficiency, Low Power Consumption.
- Built-in Isolator.
- Low PDG.
Specifications :
| Parameters |
Unit |
Min |
Typical |
Max |
| Drive Current (If ) |
mA |
|
120 |
300 |
| Saturation Output Power (Psat ) (If =120mA) |
dBm |
10 |
|
|
| Operating Wavelength (λ) |
nm |
1260 |
1310 |
1340 |
| 3dB Optical Bandwidth (Δλ3dB) |
nm |
40 |
70 |
|
| Small Signal Gain (Gmax) (If =120mA; Pin=-25dBm) |
dB |
20 |
|
|
| Gain Ripple ((ΔG) |
dB |
|
0.5 |
1 |
| Noise Figure (NF) |
dB |
|
7.5 |
|
Polarization Dependent Gain (PDG) |
dB |
|
1.0 |
2.0 |
| TEC Drive Current (ITEC) |
A |
|
|
1.8 |
| TEC Drive Voltage (VTEC) |
V |
|
|
3.4 |
| Thermistor Resistance (Rtherm)(T=25°C) |
KΩ |
9.5 |
10 |
10.5 |
| Air tightness (T=25°C) |
Pa.m^3/s |
1*10^-12 |
1*10^-11 |
1*10^-8 |
| Power Consumption (P) |
W |
|
|
4 |
| Operation Temperature (I=Iop) |
°C |
-10 |
|
70 |
| Storage Temperature |
°C |
|
|
85 |
Optical Characteristics:
Dimensions and Pin Definition:

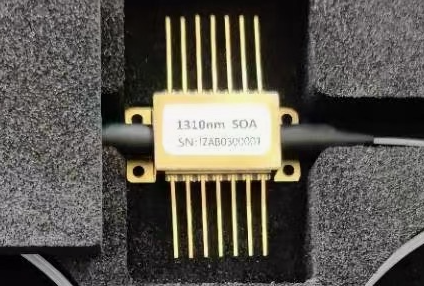

1310nm SM fiber coupled SOA, FC/APC connector, SSOA-1310113($1550.0):
|
|
|
|
|
|
|
|
Around 3-week lead time, Contact us for quantity pricing.
|
|
